What size Real Fyre G10 or G19A Gas Burner will fit in my fireplace?

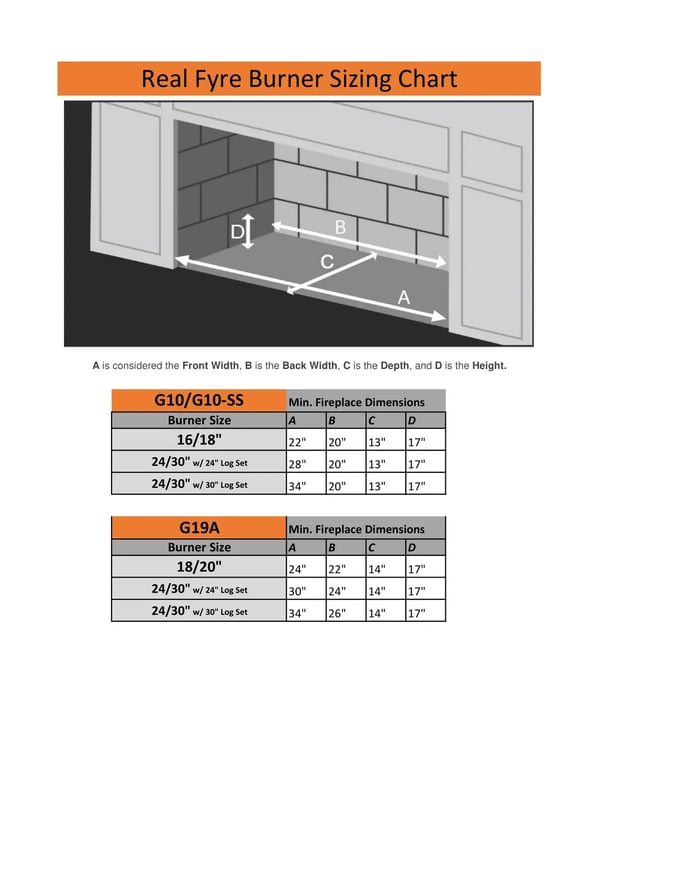

To choose the correct size Real Fyre G10 or G19A gas burner for your fireplace, you'll need to measure your fireplace's front width (A), back width (B), depth (C), and height (D). These measurements help ensure the burner fits properly and operates safely. Below is a breakdown of the burner sizes and the minimum fireplace dimensions required for each model.

G10/G10-SS Burner Sizes:

• 16"/18" Burner:

  • Min. Fireplace Dimensions:
    • A (Front Width): 22"
    • B (Back Width): 20"
    • C (Depth): 13"
    • D (Height): 17"

• 24"/30" Burner with 24" Log Set:

  • Min. Fireplace Dimensions:
    • A (Front Width): 28"
    • B (Back Width): 20"
    • C (Depth): 13"
    • D (Height): 17"

• 24"/30" Burner with 30" Log Set:

  • Min. Fireplace Dimensions:
    • A (Front Width): 34"
    • B (Back Width): 20"
    • C (Depth): 13"
    • D (Height): 17"

G19A Burner Sizes:

• 18"/20" Burner:

  • Min. Fireplace Dimensions:
    • A (Front Width): 24"
    • B (Back Width): 22"
    • C (Depth): 14"
    • D (Height): 17"

• 24"/30" Burner with 24" Log Set:

  • Min. Fireplace Dimensions:
    • A (Front Width): 30"
    • B (Back Width): 24"
    • C (Depth): 14"
    • D (Height): 17"

• 24"/30" Burner with 30" Log Set:

  • Min. Fireplace Dimensions:
    • A (Front Width): 34"
    • B (Back Width): 26"
    • C (Depth): 14"
    • D (Height): 17"

How to Choose:

1. Measure: Take accurate measurements of your fireplace's front width, back width, depth, and height.
2. Match: Compare these measurements with the minimum fireplace dimensions listed for the burner size you are considering.
3. Fit: Ensure the burner and log set you choose fit comfortably within your fireplace's dimensions for optimal performance.
