What size Real Fyre G18 or G21-GL Gas Burner will fit in my fireplace?

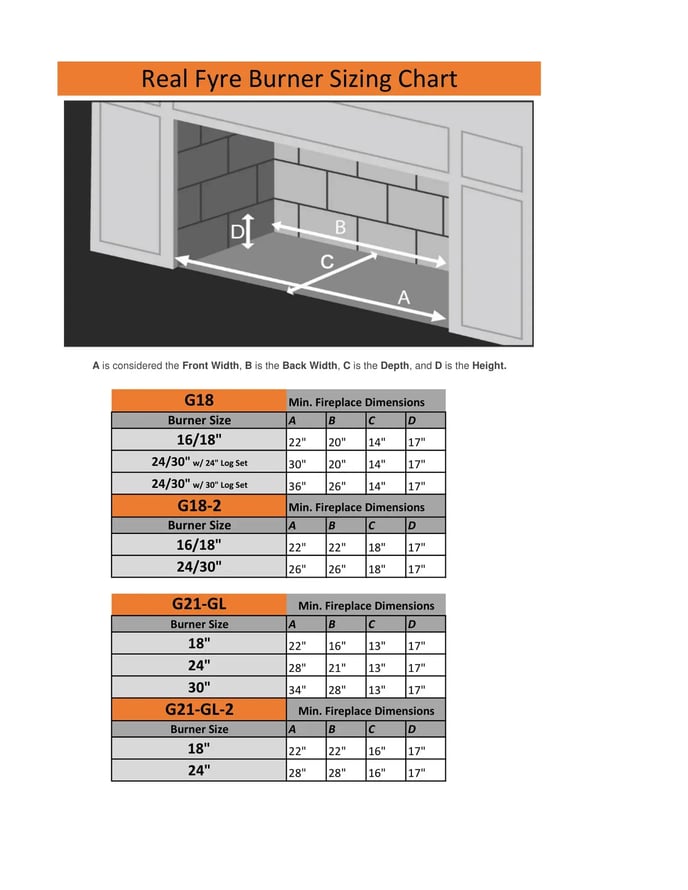

To determine the correct size Real Fyre G18 or G21-GL gas burner for your fireplace, you will need to measure your fireplace’s front width (A), back width (B), depth (C), and height (D). These measurements ensure that the burner fits properly for safe and effective use.

G18 Burner Sizes:

  • 16"/18" Burner:

    • Min. Fireplace Dimensions:
      • A (Front Width): 22"
      • B (Back Width): 20"
      • C (Depth): 14"
      • D (Height): 17"
  • 24"/30" Burner with 24" Log Set:

    • Min. Fireplace Dimensions:
      • A (Front Width): 30"
      • B (Back Width): 20"
      • C (Depth): 14"
      • D (Height): 17"
  • 24"/30" Burner with 30" Log Set:

    • Min. Fireplace Dimensions:
      • A (Front Width): 36"
      • B (Back Width): 26"
      • C (Depth): 14"
      • D (Height): 17"

G21-GL Burner Sizes:

  • 18" Burner:

    • Min. Fireplace Dimensions:
      • A (Front Width): 22"
      • B (Back Width): 16"
      • C (Depth): 13"
      • D (Height): 17"
  • 24" Burner:

    • Min. Fireplace Dimensions:
      • A (Front Width): 28"
      • B (Back Width): 21"
      • C (Depth): 13"
      • D (Height): 17"
  • 30" Burner:

    • Min. Fireplace Dimensions:
      • A (Front Width): 34"
      • B (Back Width): 28"
      • C (Depth): 13"
      • D (Height): 17"

G21-GL-2 Burner Sizes:

  • 18" Burner:

    • Min. Fireplace Dimensions:
      • A (Front Width): 22"
      • B (Back Width): 22"
      • C (Depth): 16"
      • D (Height): 17"
  • 24" Burner:

    • Min. Fireplace Dimensions:
      • A (Front Width): 28"
      • B (Back Width): 28"
      • C (Depth): 16"
      • D (Height): 17"

How to Choose:

  1. Measure: Take accurate measurements of your fireplace’s front width, back width, depth, and height.
  2. Compare: Use these measurements to compare with the minimum fireplace dimensions listed for the G18 and G21-GL burner sizes.
  3. Fit: Ensure the burner and log set you choose will fit comfortably within your fireplace’s dimensions for optimal performance.
