What size Real Fyre G22-GL Gas Burner will fit in my fireplace?

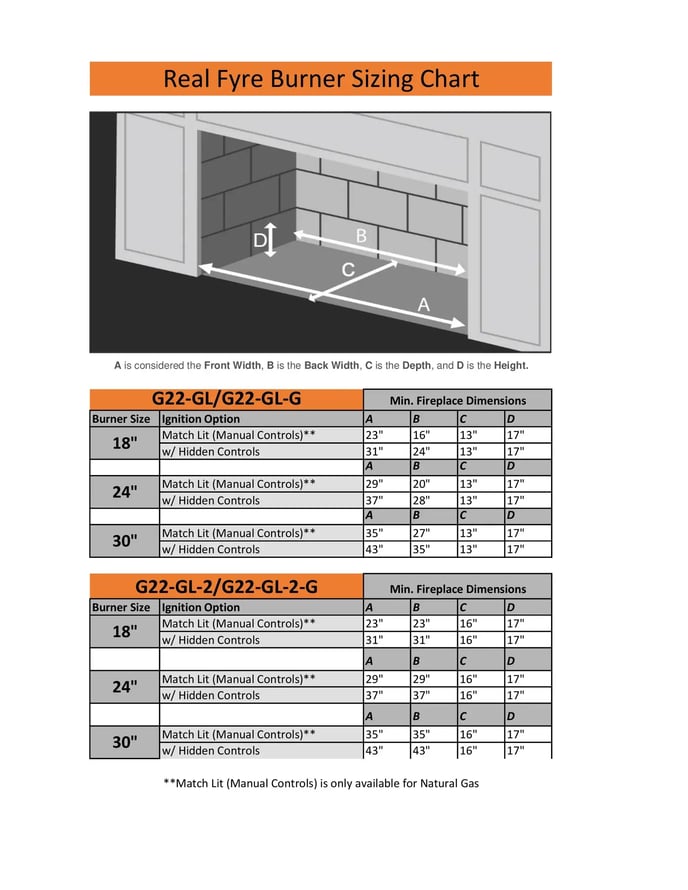

To select the appropriate Real Fyre G22-GL gas burner for your fireplace, measure the front width (A), back width (B), depth (C), and height (D) of your fireplace. Use the table below to compare your measurements with the minimum fireplace dimensions for each burner size and ignition option.

G22-GL/G22-GL-G Burner Sizes:

1. 18" Burner:
   • Min. Fireplace Dimensions:
     • Match Lit (Manual Controls):
       • A (Front Width): 23"
       • B (Back Width): 16"
       • C (Depth): 13"
       • D (Height): 17"
     • w/ Hidden Controls:
       • A (Front Width): 31"
       • B (Back Width): 24"
       • C (Depth): 13"
       • D (Height): 17"

1. 24" Burner:
   • Min. Fireplace Dimensions:
     • Match Lit (Manual Controls):
       • A (Front Width): 29"
       • B (Back Width): 20"
       • C (Depth): 13"
       • D (Height): 17"
     • w/ Hidden Controls:
       • A (Front Width): 37"
       • B (Back Width): 28"
       • C (Depth): 13"
       • D (Height): 17"

1. 30" Burner:
   • Min. Fireplace Dimensions:
     • Match Lit (Manual Controls):
       • A (Front Width): 35"
       • B (Back Width): 27"
       • C (Depth): 13"
       • D (Height): 17"
     • w/ Hidden Controls:
       • A (Front Width): 43"
       • B (Back Width): 35"
       • C (Depth): 13"
       • D (Height): 17"

G22-GL-2/G22-GL-2-G Burner Sizes:

1. 18" Burner:
   • Min. Fireplace Dimensions:
     • Match Lit (Manual Controls):
       • A (Front Width): 23"
       • B (Back Width): 23"
       • C (Depth): 16"
       • D (Height): 17"
     • w/ Hidden Controls:
       • A (Front Width): 31"
       • B (Back Width): 31"
       • C (Depth): 16"
       • D (Height): 17"

1. 24" Burner:
   • Min. Fireplace Dimensions:
     • Match Lit (Manual Controls):
       • A (Front Width): 29"
       • B (Back Width): 29"
       • C (Depth): 16"
       • D (Height): 17"
     • w/ Hidden Controls:
       • A (Front Width): 37"
       • B (Back Width): 37"
       • C (Depth): 16"
       • D (Height): 17"

1. 30" Burner:
   • Min. Fireplace Dimensions:
     • Match Lit (Manual Controls):
       • A (Front Width): 35"
       • B (Back Width): 35"
       • C (Depth): 16"
       • D (Height): 17"
     • w/ Hidden Controls:
       • A (Front Width): 43"
       • B (Back Width): 43"
       • C (Depth): 16"
       • D (Height): 17"

Choosing the Right Size:

1. Measure Your Fireplace: Measure the front width (A), back width (B), depth (C), and height (D) of your fireplace.
2. Compare Your Dimensions: Match your measurements with the minimum dimensions listed for the G22-GL burner size and ignition option.
3. Ignition Options:
   • Match Lit (Manual Controls) is only available for natural gas.
   • Other ignition options include Hidden Controls, which are ideal if you prefer a clean and streamlined look.
