What size Real Fyre G31 Gas Burner will fit in my fireplace?

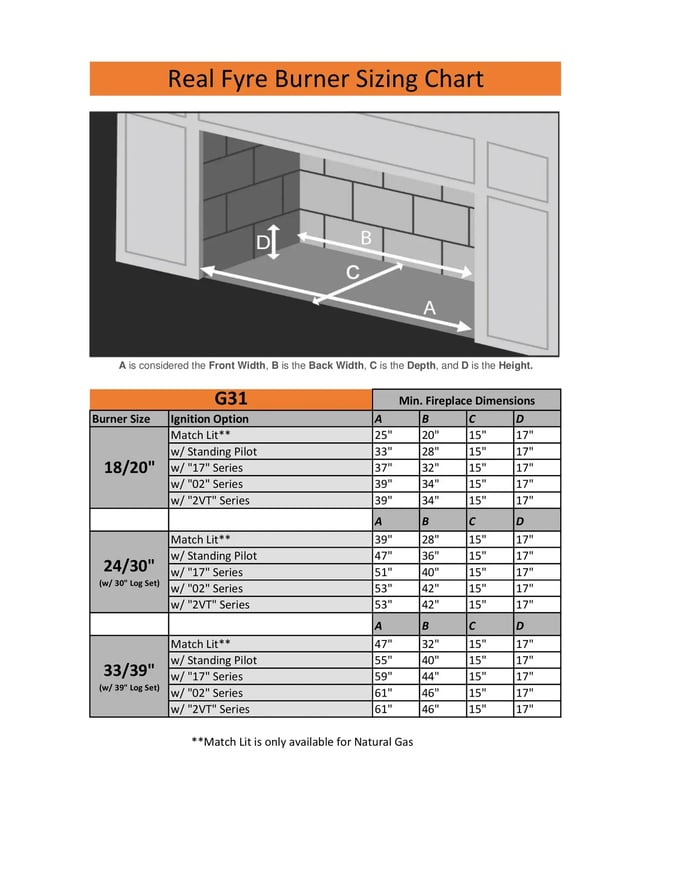

To determine the appropriate Real Fyre G31 gas burner for your fireplace, measure the front width (A), back width (B), depth (C), and height (D) of your fireplace. The table below lists the minimum fireplace dimensions required for each burner size and ignition option.

G31 Burner Sizes:

1. 18"/20" Burner:
   • Min. Fireplace Dimensions:
     • Match Lit (Manual Controls):
       • A (Front Width): 25"
       • B (Back Width): 20"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ Standing Pilot:
       • A (Front Width): 33"
       • B (Back Width): 28"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "17" Series:
       • A (Front Width): 37"
       • B (Back Width): 32"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "02" Series:
       • A (Front Width): 39"
       • B (Back Width): 34"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "2V"T Series:
       • A (Front Width): 39"
       • B (Back Width): 34"
       • C (Depth): 15"
       • D (Height): 17"

1. 24"/30" Burner (with 30" Log Set):
   • Min. Fireplace Dimensions:
     • Match Lit (Manual Controls):
       • A (Front Width): 39"
       • B (Back Width): 28"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ Standing Pilot:
       • A (Front Width): 47"
       • B (Back Width): 36"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "17" Series:
       • A (Front Width): 51"
       • B (Back Width): 40"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "02" Series:
       • A (Front Width): 53"
       • B (Back Width): 42"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "2V"T Series:
       • A (Front Width): 53"
       • B (Back Width): 42"
       • C (Depth): 15"
       • D (Height): 17"

1. 33"/39" Burner (with 39" Log Set):
   • Min. Fireplace Dimensions:
     • Match Lit (Manual Controls):
       • A (Front Width): 47"
       • B (Back Width): 32"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ Standing Pilot:
       • A (Front Width): 55"
       • B (Back Width): 40"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "17" Series:
       • A (Front Width): 59"
       • B (Back Width): 44"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "02" Series:
       • A (Front Width): 61"
       • B (Back Width): 46"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "2V"T Series:
       • A (Front Width): 61"
       • B (Back Width): 46"
       • C (Depth): 15"
       • D (Height): 17"

Choosing the Right Size:

1. Measure Your Fireplace: Measure the front width (A), back width (B), depth (C), and height (D) of your fireplace.
2. Compare Your Dimensions: Match your measurements with the minimum dimensions listed for the G31 burner size and ignition option.
3. Ignition Options:
   • Match Lit (Manual Controls) is only available for natural gas.
   • Other ignition options include Standing Pilot, Series "17", "02", and "2VT", depending on your requirements.
