What size Real Fyre G46 Gas Burner will fit in my fireplace?

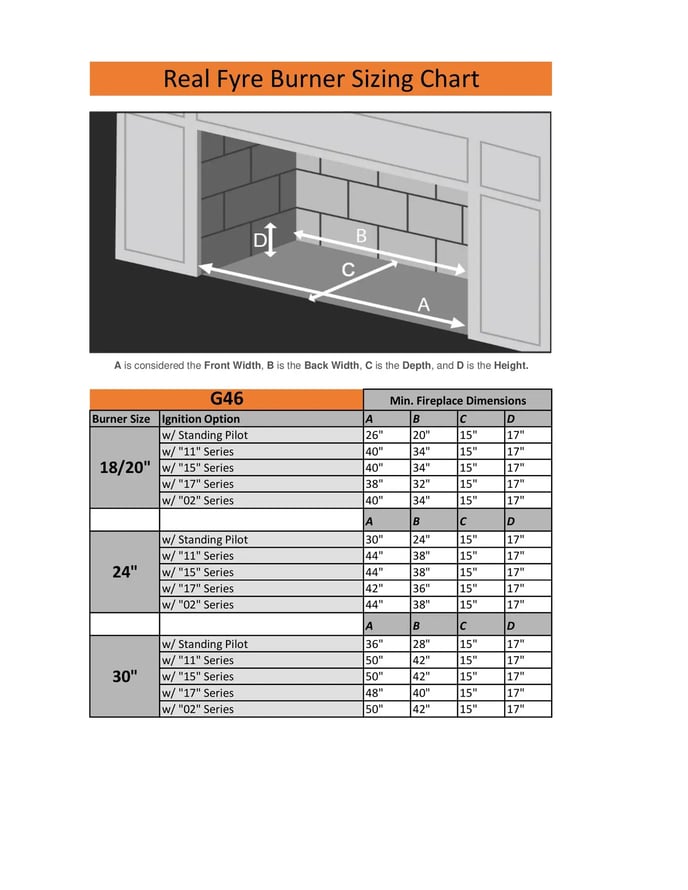

To select the correct Real Fyre G46 gas burner for your fireplace, measure your fireplace’s front width (A), back width (B), depth (C), and height (D). Use these dimensions to compare with the minimum fireplace dimensions listed below for each burner size and ignition option.

G46 Burner Sizes:

1. 18"/20" Burner:
   • Min. Fireplace Dimensions:
     • w/ Standing Pilot:
       • A (Front Width): 26"
       • B (Back Width): 20"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "11" Series:
       • A (Front Width): 40"
       • B (Back Width): 34"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "15" Series:
       • A (Front Width): 40"
       • B (Back Width): 34"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "17" Series:
       • A (Front Width): 38"
       • B (Back Width): 32"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "02" Series:
       • A (Front Width): 40"
       • B (Back Width): 34"
       • C (Depth): 15"
       • D (Height): 17"

1. 24" Burner:
   • Min. Fireplace Dimensions:
     • w/ Standing Pilot:
       • A (Front Width): 30"
       • B (Back Width): 24"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "11" Series:
       • A (Front Width): 44"
       • B (Back Width): 38"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "15" Series:
       • A (Front Width): 44"
       • B (Back Width): 38"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "17" Series:
       • A (Front Width): 42"
       • B (Back Width): 36"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "02" Series:
       • A (Front Width): 44"
       • B (Back Width): 38"
       • C (Depth): 15"
       • D (Height): 17"

1. 30" Burner:
   • Min. Fireplace Dimensions:
     • w/ Standing Pilot:
       • A (Front Width): 36"
       • B (Back Width): 28"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "11" Series:
       • A (Front Width): 50"
       • B (Back Width): 42"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "15" Series:
       • A (Front Width): 50"
       • B (Back Width): 42"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "17" Series:
       • A (Front Width): 48"
       • B (Back Width): 40"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "02" Series:
       • A (Front Width): 50"
       • B (Back Width): 42"
       • C (Depth): 15"
       • D (Height): 17"

Choosing the Right Size:

1. Measure Your Fireplace: Measure the front width (A), back width (B), depth (C), and height (D) of your fireplace.
2. Match the Dimensions: Compare your measurements with the minimum dimensions listed for the G46 burner size you’re considering.
3. Choose the Right Ignition Option: Select between Standing Pilot, Series "11", "15", "17", or "02", depending on your desired ignition control features.
