What size Real Fyre G52 Gas Burner will fit in my fireplace?

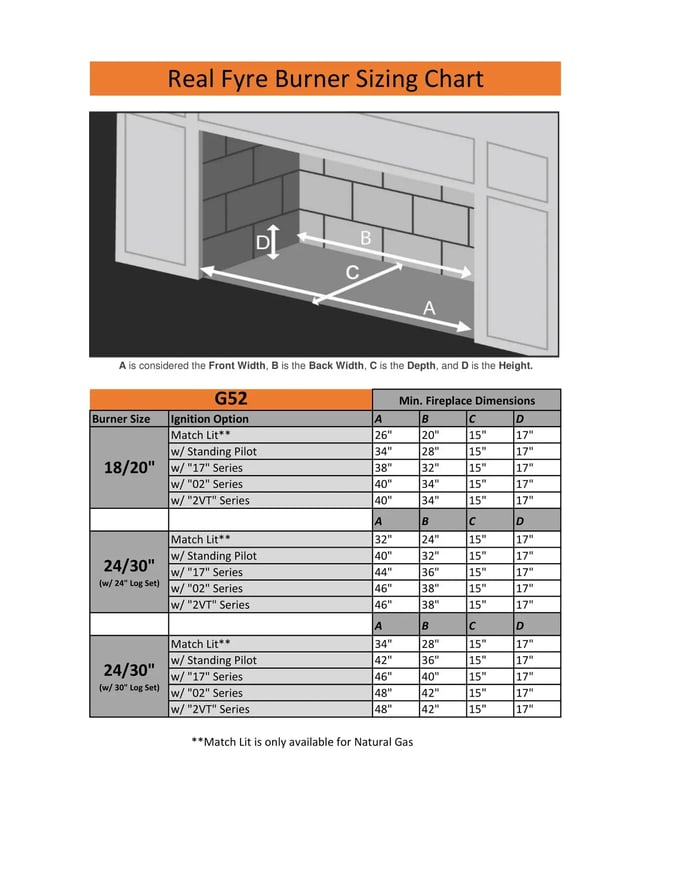

To determine the correct Real Fyre G52 gas burner size for your fireplace, you'll need to measure the front width (A), back width (B), depth (C), and height (D). The minimum fireplace dimensions for each burner size and ignition option are listed below.

G52 Burner Sizes:

1. 18"/20" Burner:
   • Min. Fireplace Dimensions:
     • Match Lit:
       • A (Front Width): 26"
       • B (Back Width): 20"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ Standing Pilot:
       • A (Front Width): 34"
       • B (Back Width): 28"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "17" Series:
       • A (Front Width): 38"
       • B (Back Width): 32"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "02" Series:
       • A (Front Width): 40"
       • B (Back Width): 34"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "2V"T Series:
       • A (Front Width): 40"
       • B (Back Width): 34"
       • C (Depth): 15"
       • D (Height): 17"

1. 24"/30" Burner (with 24" Log Set):
   • Min. Fireplace Dimensions:
     • Match Lit:
       • A (Front Width): 32"
       • B (Back Width): 24"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ Standing Pilot:
       • A (Front Width): 40"
       • B (Back Width): 32"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "17" Series:
       • A (Front Width): 44"
       • B (Back Width): 36"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "02" Series:
       • A (Front Width): 46"
       • B (Back Width): 38"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "2V"T Series:
       • A (Front Width): 46"
       • B (Back Width): 38"
       • C (Depth): 15"
       • D (Height): 17"

1. 24"/30" Burner (with 30" Log Set):
   • Min. Fireplace Dimensions:
     • Match Lit:
       • A (Front Width): 34"
       • B (Back Width): 28"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ Standing Pilot:
       • A (Front Width): 42"
       • B (Back Width): 36"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "17" Series:
       • A (Front Width): 46"
       • B (Back Width): 40"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "02" Series:
       • A (Front Width): 48"
       • B (Back Width): 42"
       • C (Depth): 15"
       • D (Height): 17"
     • w/ "2V"T Series:
       • A (Front Width): 48"
       • B (Back Width): 42"
       • C (Depth): 15"
       • D (Height): 17"

How to Choose:

1. Measure Your Fireplace: Take accurate measurements of the front width (A), back width (B), depth (C), and height (D).
2. Match Your Dimensions: Compare your measurements with the minimum fireplace dimensions listed for the G52 burner size and ignition option you are considering.
3. Ignition Options:
   • Match Lit (Manual Controls) is only available for natural gas.
   • Standing Pilot and Series "17", "02", and "2V"T offer additional control options.
