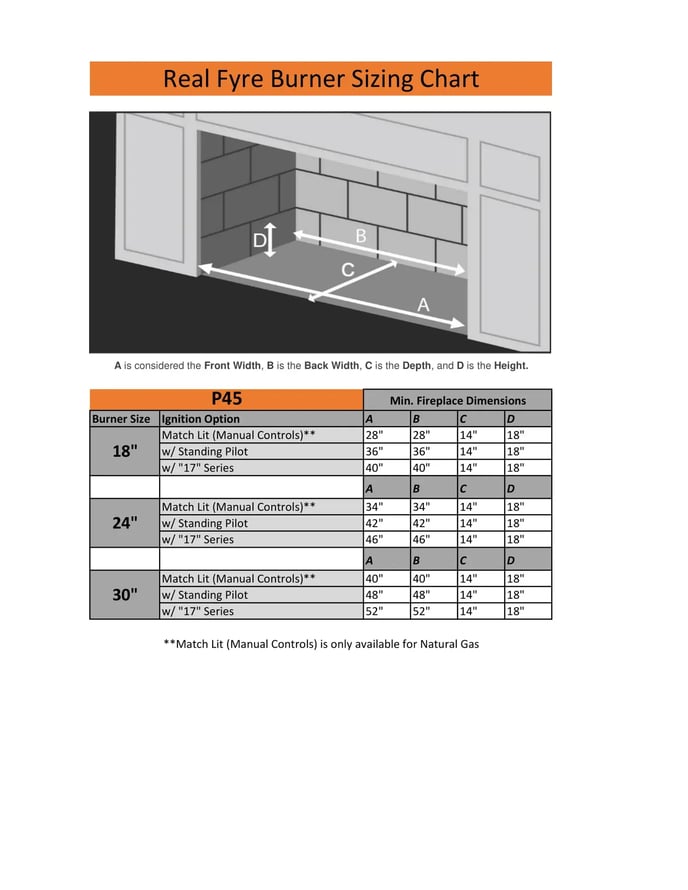

To determine the appropriate Real Fyre P45 gas burner size for your fireplace, you need to measure the front width (A), back width (B), depth (C), and height (D) of your fireplace. These measurements will help ensure a proper fit for your burner and log set.
P45 Burner Sizes:
-
18" Burner:
- Min. Fireplace Dimensions:
- Match Lit (Manual Controls):
- A (Front Width): 28"
- B (Back Width): 28"
- C (Depth): 14"
- D (Height): 18"
- w/ Standing Pilot:
- A (Front Width): 36"
- B (Back Width): 36"
- C (Depth): 14"
- D (Height): 18"
- w/ "17" Series:
- A (Front Width): 40"
- B (Back Width): 40"
- C (Depth): 14"
- D (Height): 18"
- Match Lit (Manual Controls):
- Min. Fireplace Dimensions:
-
24" Burner:
- Min. Fireplace Dimensions:
- Match Lit (Manual Controls):
- A (Front Width): 34"
- B (Back Width): 34"
- C (Depth): 14"
- D (Height): 18"
- w/ Standing Pilot:
- A (Front Width): 42"
- B (Back Width): 42"
- C (Depth): 14"
- D (Height): 18"
- w/ "17" Series:
- A (Front Width): 46"
- B (Back Width): 46"
- C (Depth): 14"
- D (Height): 18"
- Match Lit (Manual Controls):
- Min. Fireplace Dimensions:
-
30" Burner:
- Min. Fireplace Dimensions:
- Match Lit (Manual Controls):
- A (Front Width): 40"
- B (Back Width): 40"
- C (Depth): 14"
- D (Height): 18"
- w/ Standing Pilot:
- A (Front Width): 48"
- B (Back Width): 48"
- C (Depth): 14"
- D (Height): 18"
- w/ "17" Series:
- A (Front Width): 52"
- B (Back Width): 52"
- C (Depth): 14"
- D (Height): 18"
- Match Lit (Manual Controls):
- Min. Fireplace Dimensions:
Choosing the Right Size:
- Measure Your Fireplace: Start by measuring the front width (A), back width (B), depth (C), and height (D) of your fireplace.
- Compare the Measurements: Match your measurements to the minimum fireplace dimensions listed for the P45 burner size and ignition option you're considering.
- Choose the Right Ignition Option:
- Match Lit (Manual Controls) is only available for natural gas.
- For Standing Pilot and 17 Series, ensure you have enough space for the additional controls.
